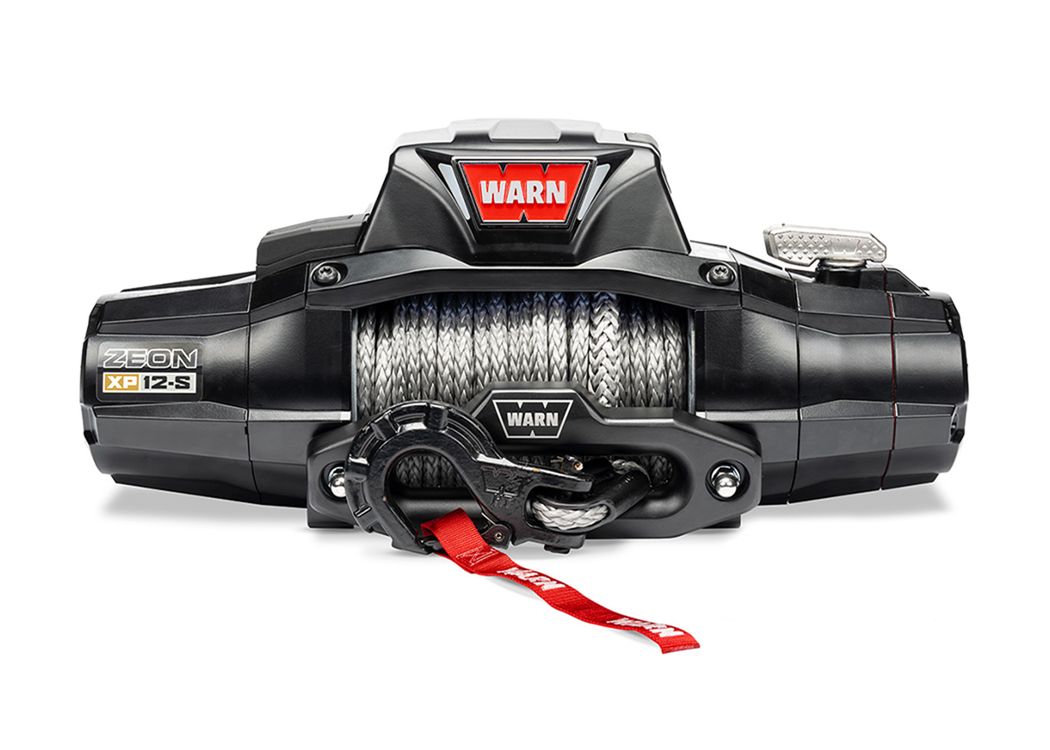

WARN ZEON XP 12-S Winch

$2,679.99
Disclaimer: The following information is provided by the manufacturer of the product and RealTruck is not responsible or liable for the content or accuracy of the information provided by the manufacturer.

Description

The WARN ZEON XP 12-S Winch delivers fast, powerful recovery performance with a 12,000 pound pulling capacity, making it well suited for full-size trucks and SUVs that demand reliable strength in off-road and work environments. Designed as part of WARN’s ZEON XP series, this winch prioritizes speed, efficiency, and durability for frequent recovery use.

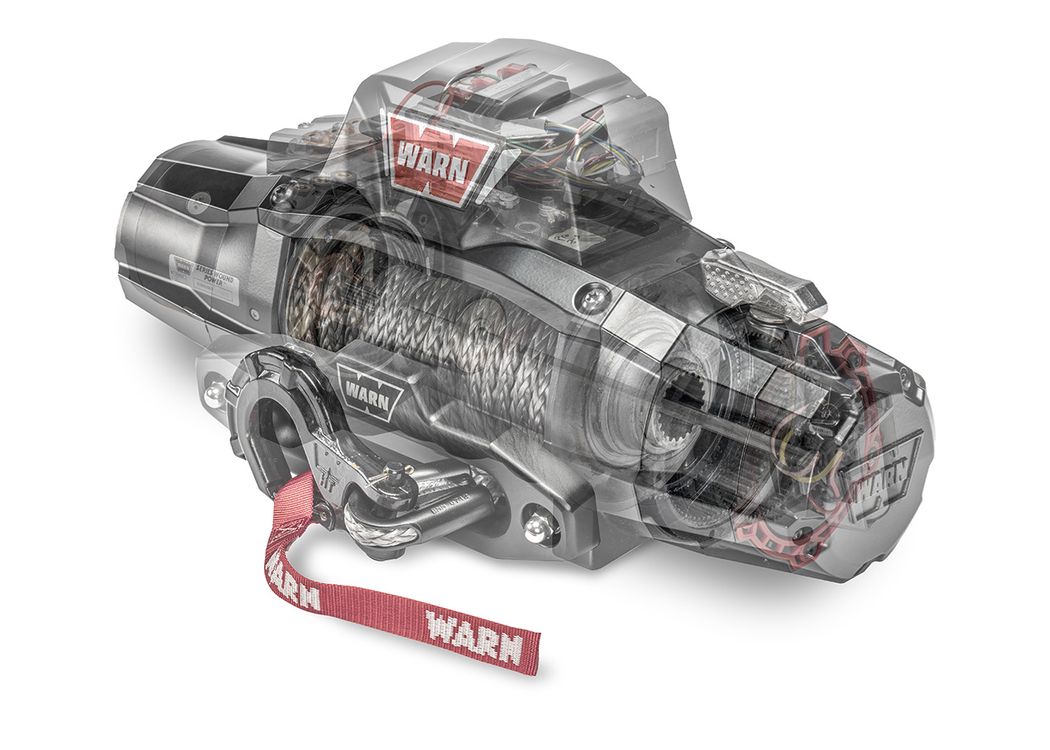

Built with a high-output motor, performance-focused geartrain, and fully sealed construction, the ZEON XP 12-S is engineered to perform consistently in mud, water, and harsh weather conditions. The synthetic rope reduces overall weight while improving handling and safety during recoveries. Finished in a modern, low-profile housing, the ZEON XP 12-S integrates cleanly with aftermarket bumpers and winch mounts, delivering trusted WARN performance with faster line speeds and dependable control.

Videos

WARN ZEON XP: TESTED AT THE LAST FRONTIER
04:16
Basic Guide to Winch Techniques
07:54

Installation

All Warn Winches have an easy, do-it-yourself installation and can be done in the comfort of your garage or driveway. For any additional questions please call us.

How to install a winch featuring the WARN ZEON
02:38

Warranty

Warn Industries, Inc. (WARN), warrants to the original purchaser that (a) the mechanical components of the WARN Branded Winch Product will be free of defects in material and workmanship for the lifetime of the winch, and (b) the electrical components of the product will be free of defects in material and workmanship for a period of seven (7) years from the original date of purchase. This Limited Warranty is only available to the original purchaser of the product and is not transferable.

Items not covered by this Warranty:

  • The removal or reinstallation of the product.
  • Wire or Synthetic Ropes.
  • Product finish.
  • Components damaged by accident, abuse, misuse, collision, overloading, modification, misapplication, improper installation, or improper service.
  • Normal wear and tear or loss of functionality due to the normal aging of the product including, bearings, bushings, seals, O-rings, gaskets, brake material, motor brushes, electrical cables.

Specifications

BrandWarn
WarrantyLimited Lifetime Mechanical / 7 Year Limited Electrical
Rated Line Pull (Single Line)12,000 lbs (5443 kg)
Rope MaterialSpydura Pro Synthetic Rope
Gear Train3-Stage Planetary
Gear Ratio141:1
FairleadBlack Anodized Forged-Aluminum Hawse
Mounting Bolt Pattern10" x 4.5" (254mm x 114.3mm)
Recommended Battery650 CCA minimum for winching
Rope Size3/8” X 80’ (9.52mm x 24.38m)

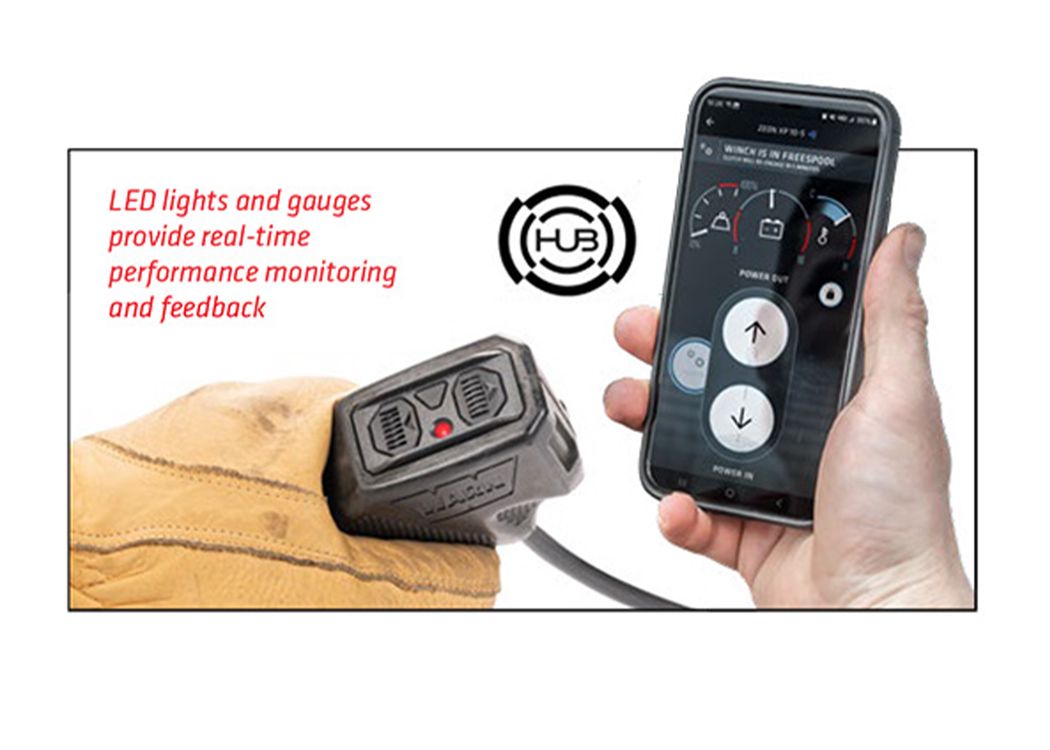

Control TypeCorded Remote + Mobile Control via integrated HUB Wireless Receiver
MADE IN AMERICAYes
