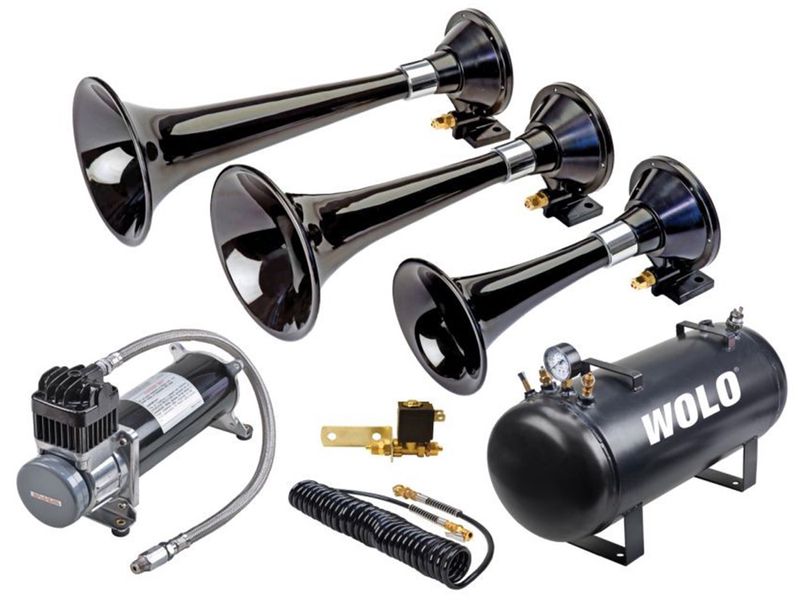

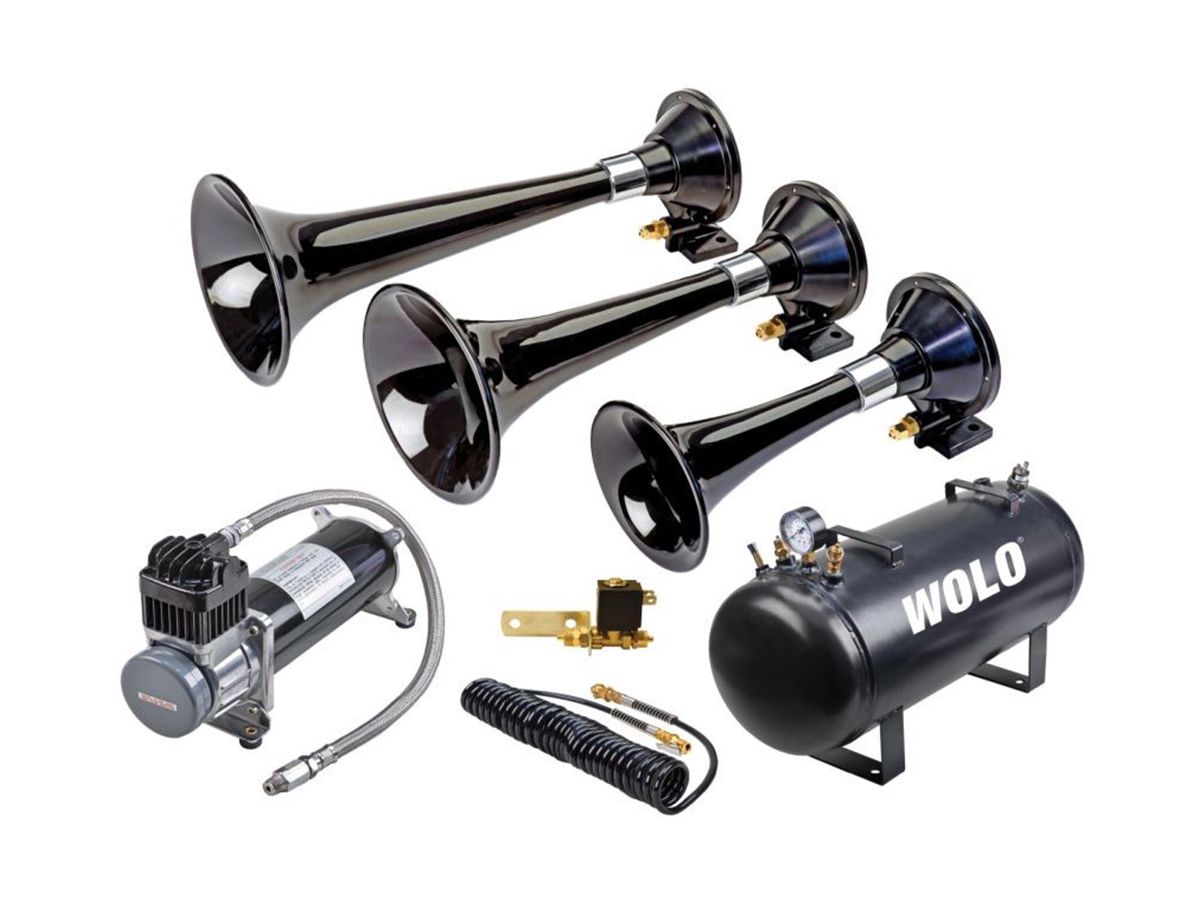

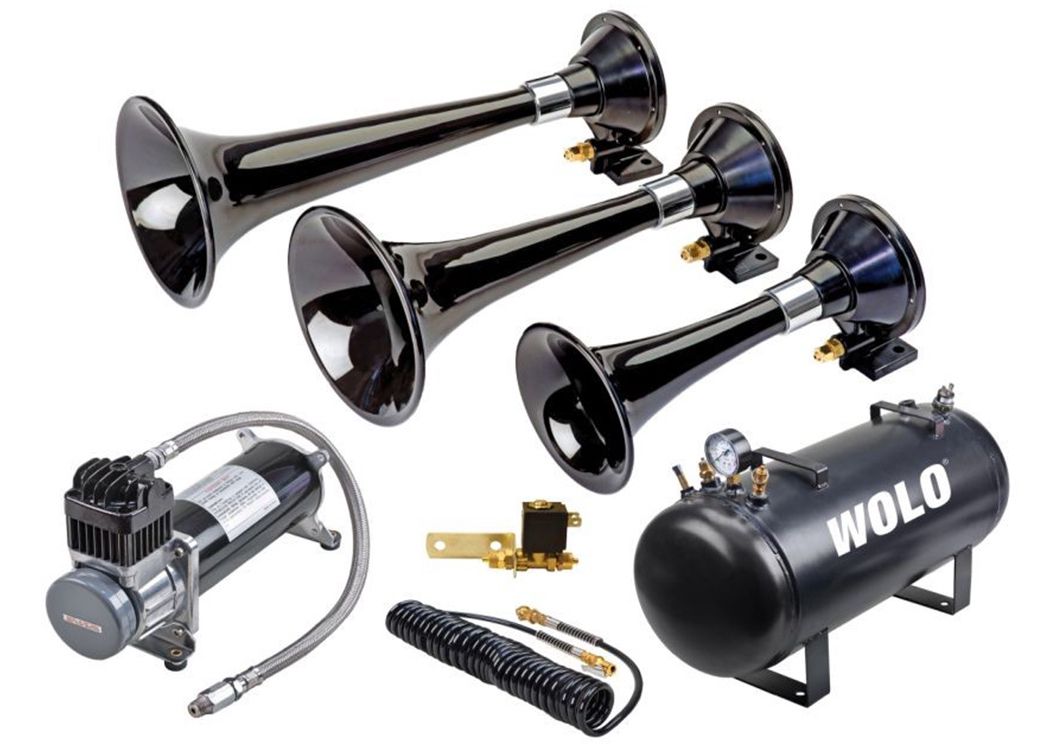

Wolo Euro Express Pro Truck Train Horn

Product Information

List Price:$287.99 - $339.99
Sale Price:$244.79 - $288.99
Now 15% off - hurry, limited time offer!

description

California Residents: Prop 65 Warning

details

Specifications

Horns
128 Decibels
310/342/363 Hz – Low Range
Short Trumpet: L 10-1/2 in. x front diameter 4-7/8 in. x rear 4-1/2 in.
Long Trumpet: L13-3/4 in. x front diameter 7-1/4 in. x rear 4-1/2 in.
Long Trumpet: L15-1/2 in. x front diameter 7-1/4 in. x rear 4-1/2 in.
Horn output with 90/110 psi: 128 db measured at 1 meter.
Horn construction: ABS plastic semi gloss black finish, mounting base metal painted black finish
Electric solenoid: 12-volts / 300 milliamps
Hose type: 1/4 in. O.D.
Air fittings: Brass
Mounting hardware and 10 ft. of 1/4" O.D. high pressure hose included.

Compressor for 2.5 Gallon Tank
Voltage: 12-volts
Current: 21-amps at peak
Duty-cycle: 33% @ 100 psi
CFM: 2.55
Pump has washable air filter
Oil-less maintenance free
Permanent magnet motor that is gearless
with thermo protection
Compressor size: L 10-1/4 in. x W 3-1/2 in. x H 6-1/2 in.
Size compressor mount on tank: L 17-1/4 in. x W 6-1/2 in. x H 15-1/2 in.

2.5 Gallon Tank
Tank capacity: 2.5 gallons
Built in pressure switch: On 80 /off 110 psi
Safety pressure relief valve
Pressure gauge
Fitting size: All brass
Petcock water drain
Tank size: L 17-1/4 in. x W 6-1/2 in. x H 8-1/4 in.

Compressor for 5 Gallon Tank
Voltage: 12-volts
Current: 22-amps at peak
CFM: 3.5
Pump has washable air filter
Oil-less maintenance free
Permanent magnet motor that is gearless with
thermo protection
Compressor size: L 11-1/2 in. x W 3-1/2 in. x H 6-1/2 in.

5 Gallon Tank
Tank capacity: 5 gallon
Built in pressure switch: On 80 /off 110 psi
Safety pressure relief valve
Pressure gauge
Fitting size: All brass
Petcock water drain
Tank size: L 20-1/2 in. x W 8-1/2 in. x H 10-1/2 in.
Size compressor mount on tank: L 20-1/2 in. x W 8-1/2 in. x H 17-1/2 in.

videos

warranty

Wolo Manufacturing Corporation (“Wolo”) warranties to the original purchaser, for one year from the date of purchase, that this product is free from defects in workmanship and materials. If there is such a proven defect, Wolo, at its option, will either repair or replace the item free of charge, if it is returned to Wolo within one year from the date of purchase together with proof of purchase as described below.

Wolo reserves the right to inspect any defect prior to settling any warranty claim by repair or replacement. This warranty is limited as above provided and Wolo will not be responsible for fire or other casualty or accident, due to neglect, abuse, abnormal use, modifications, faulty installation of this product, or natural causes.

install

Everything needed for installation of the Wolo Euro Express Pro Truck Train Horn will be included with your order. Installation instructions are also available on our site. If you have any questions, don't hesitate to give our customer service team a call seven days a week.
