  • 17,500 lbs Rated Pull Line (Single)

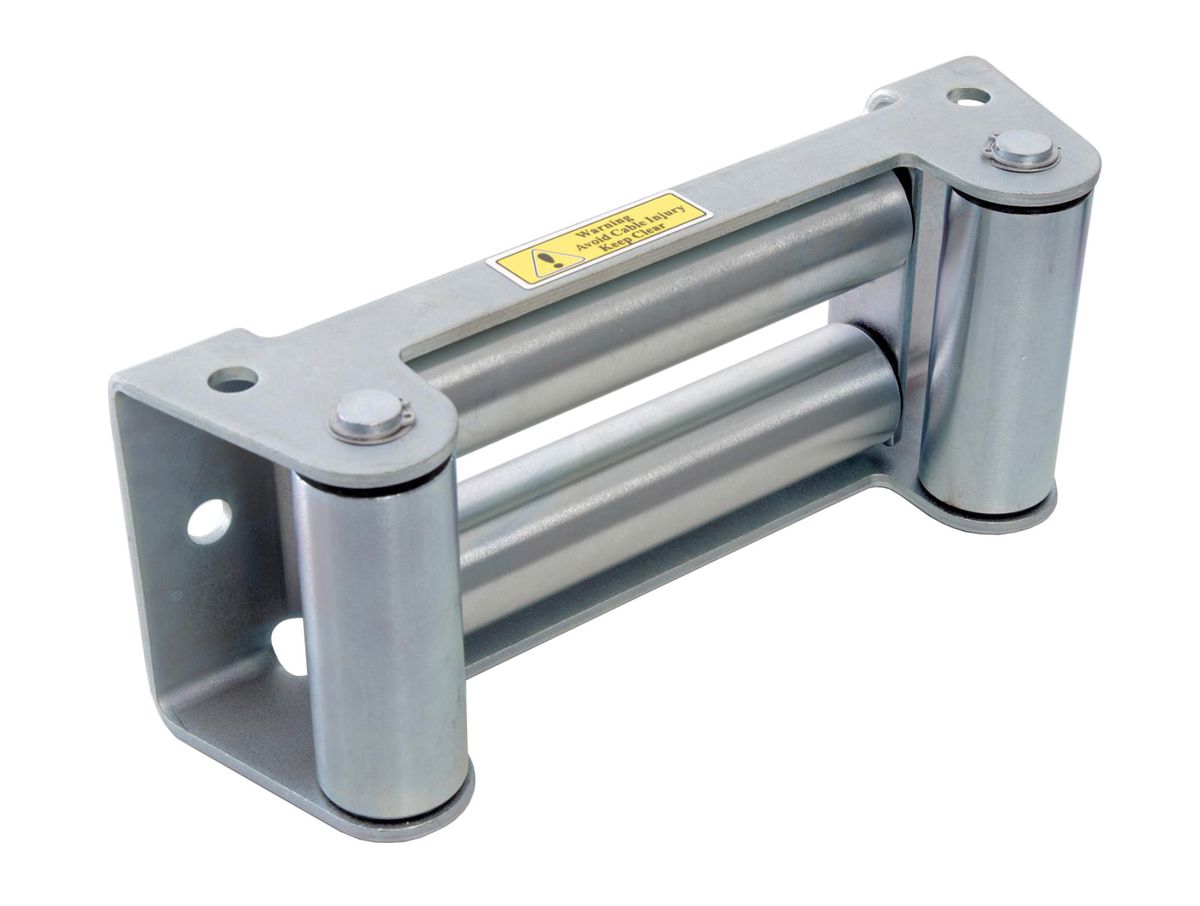

  • 1/2" x 98.5' (13mm x 30m) Steel Wire Cable w/ 4-Way Roller Fairlead
  • 6.6hp Series Wound Amphibious 12V DC Motor
  • 500 AMP solenoid pack
  • Wireless Remote Control Included
  • Movable control pack
  • 3-Stage Planetary Gear Train
  • Gear Ratio: 430:1
  • Sliding Gear Ring Clutch
  • Automatic Out-of-Drum Brake
  • Mounting Bolt Pattern - 10" x 4.5" (254mm x 114.3mm)
  • IP68 Waterproof Rating
  • 650CCA Minimum Recommended Battery
  • Dimensions - 22.3" x 7.5" x 10.7" (566mm x 190.5mm x 272mm)
  • Net Weight - 150 lbs (68Kgs)
  • Limited Lifetime Mechanical Warranty / 5-Year Electrical Warranty

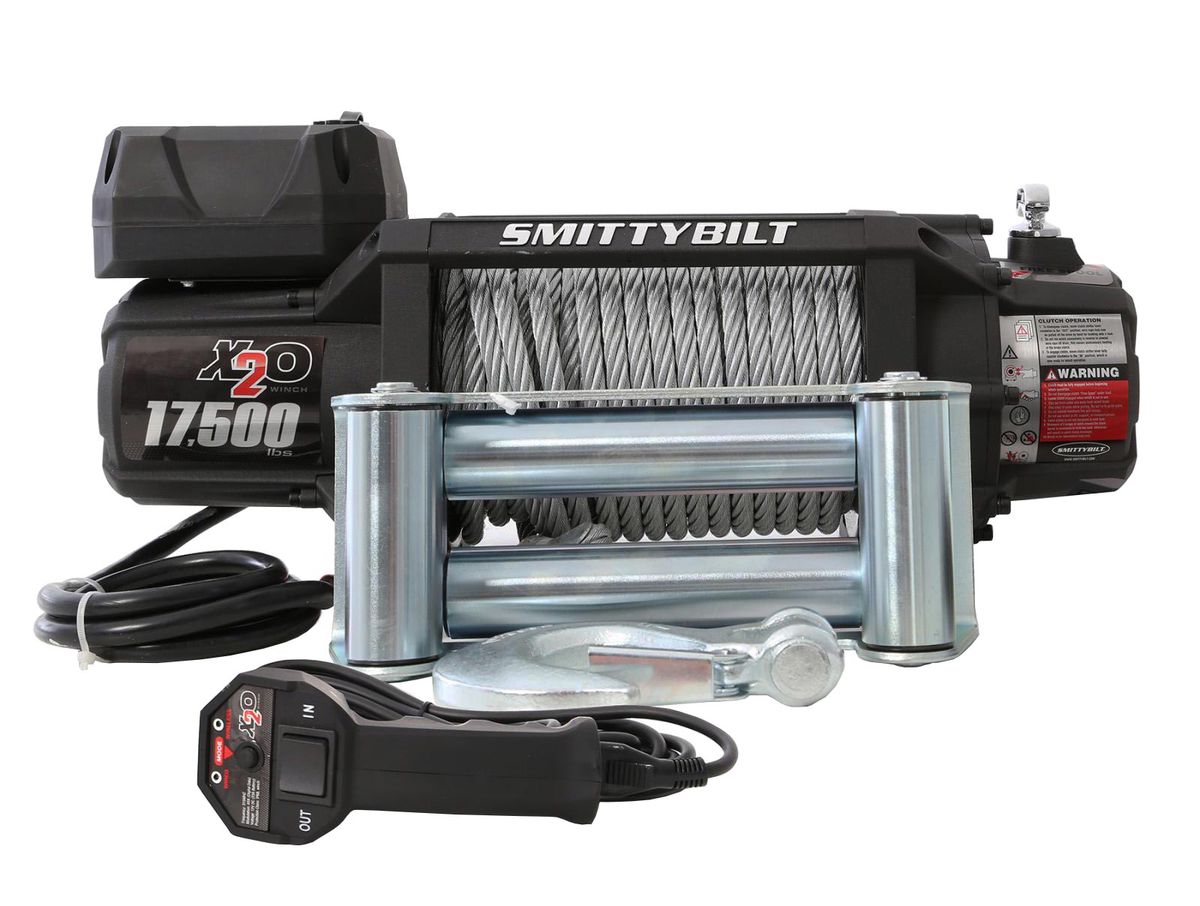

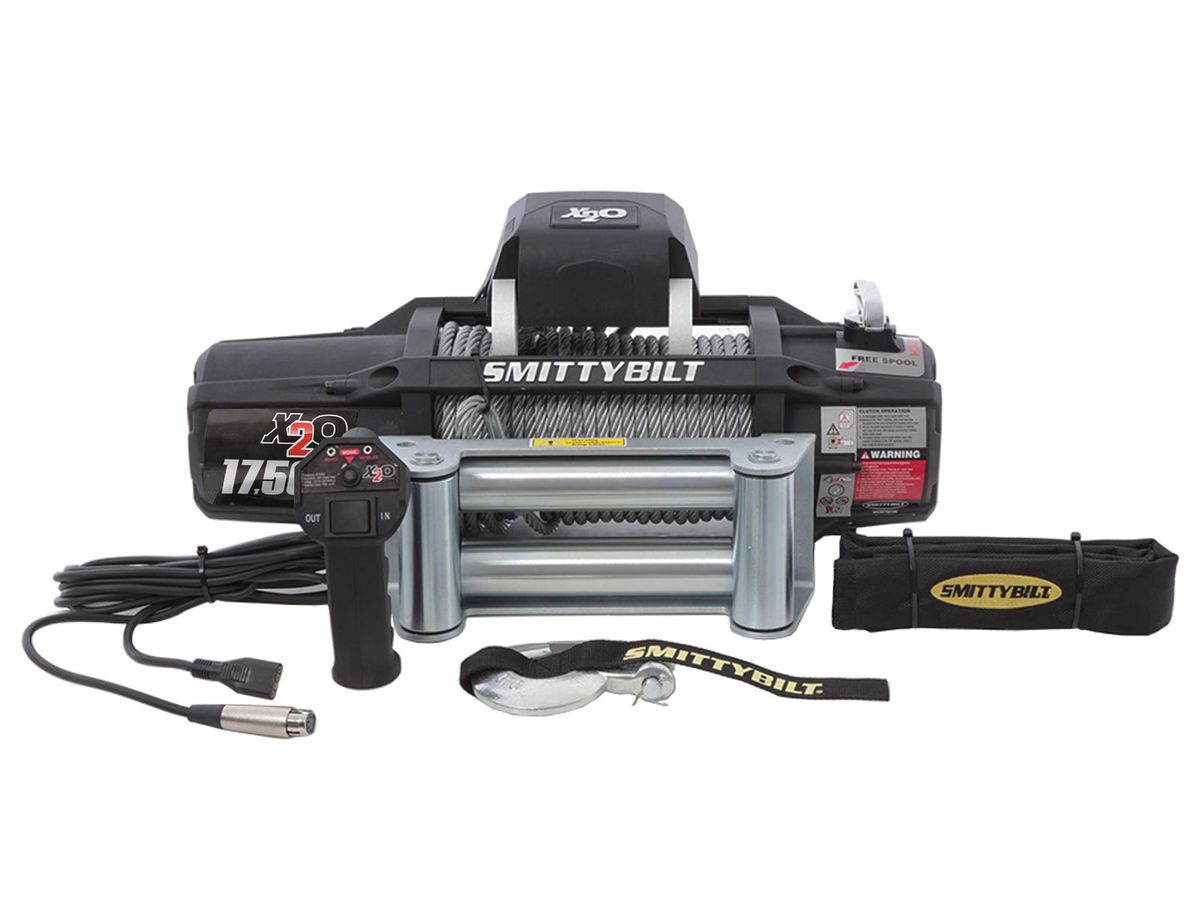

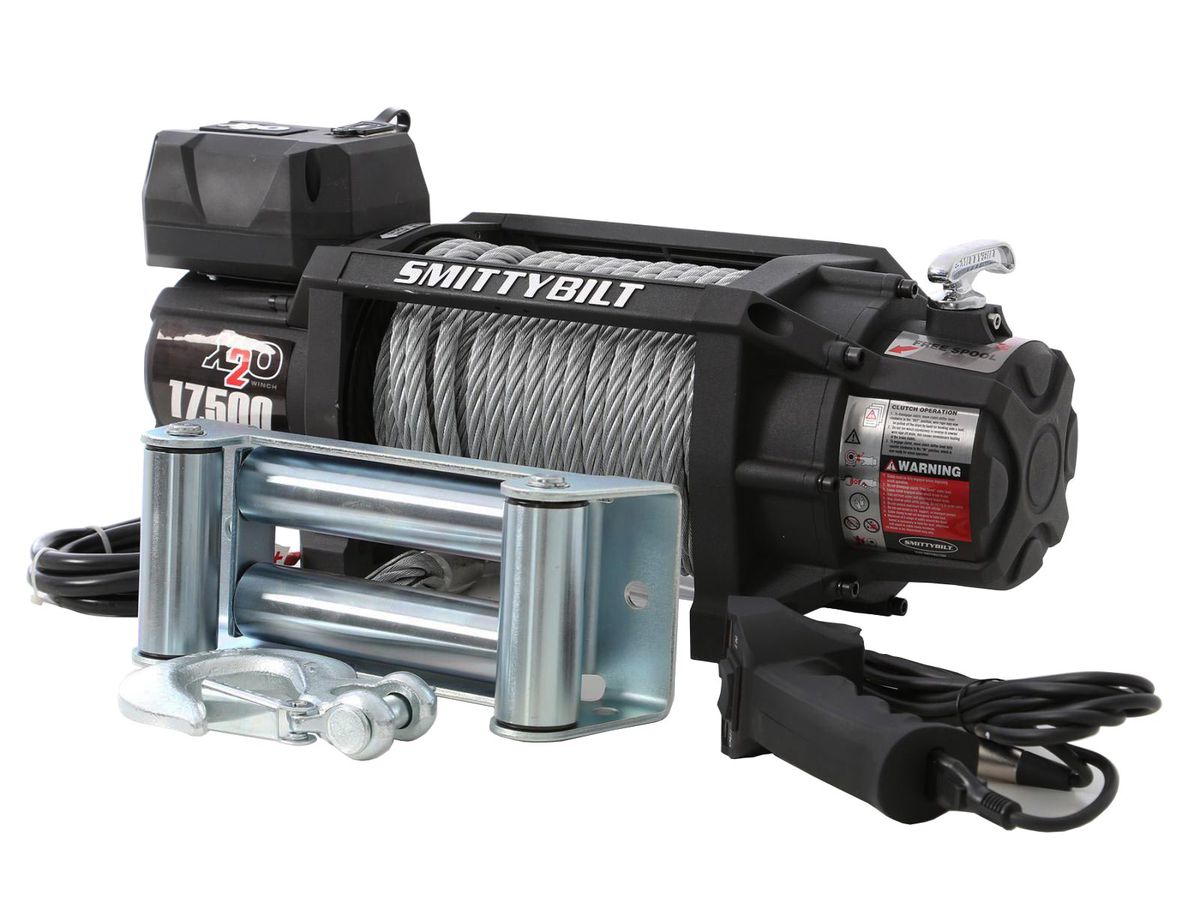

When no-name winches just don't quite cut it, upgrade to a Smittybilt X2O Gen2 17,500 lb Waterproof Winch and don't look back. The X2O Gen2 Series Winches feature a 6.6HP Amphibious Motor and a 3-Stage planetary gear system to bring you excellent performance at a price you can afford. These winches are IP68-rated, meaning they are dust-tight and completely waterproof so you can use these winches off-road with no concern.

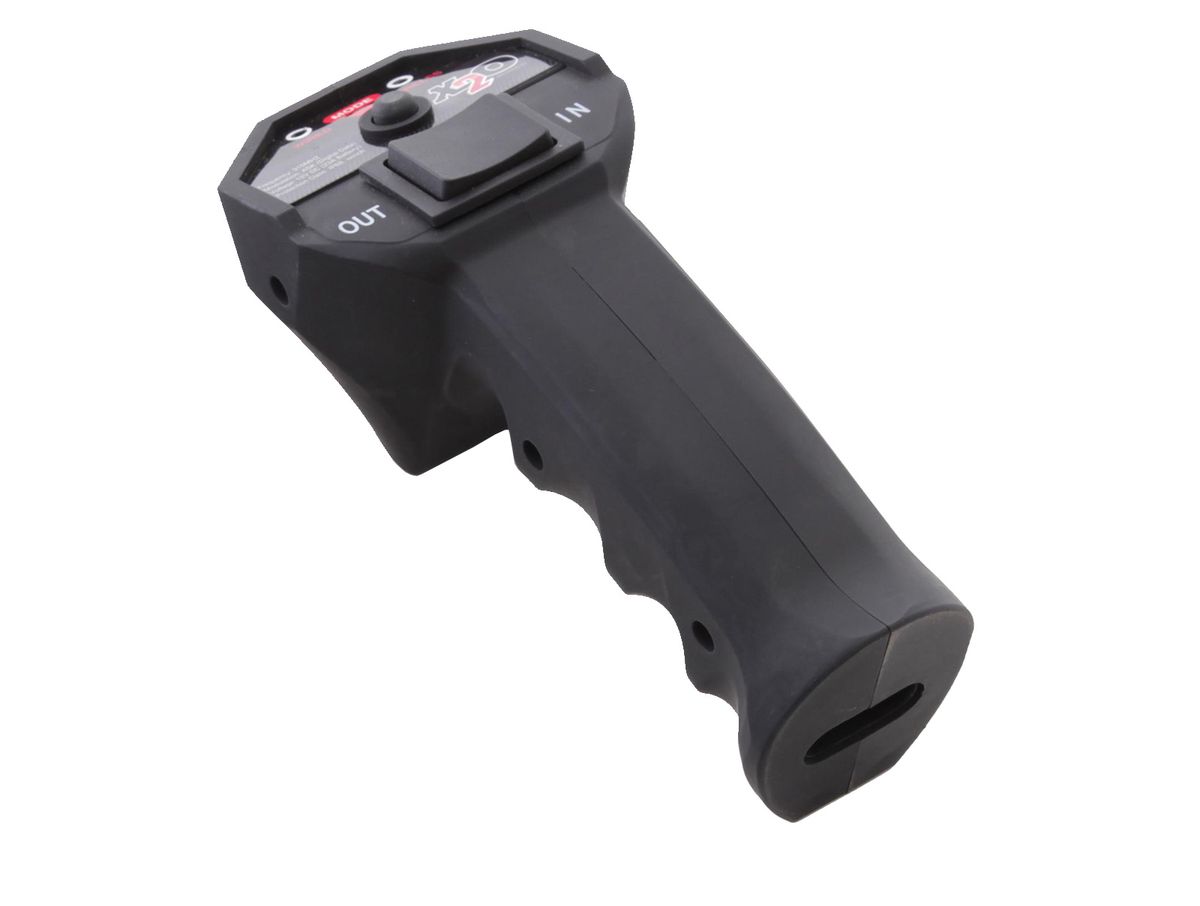

The X2O Winches come with a controller that can be operated both wired and wirelessly, providing extreme convenience when needed the most. Just grab your controller and hit the switch, and the X2O winch will do the rest. These winches are available with line pull ratings from 10,000 lb up to 17,500 lb, and by upgrading to a synthetic rope, you also get a Competition Aluminum Fairlead and Smittybilt's exclusive Dynamic Braking System. This system reduces the drum temperatures by up to 66% which allows for smoother operation and the ability for all types of synthetic ropes.

Installation of the Smittybilt X2O winch is a breeze, and an install guide is provided in the installation section below. If you need any extra help, feel free to give us a call. We have experts standing by willing to answer any questions you may have.

Our Guarantee
Best Price Guaranteed
Truck Experts a Call Away
Fastest Shipping
30 Day Return Guarantee
Lifetime Install Support
Spec Sheet
WarrantyLimited Lifetime (Mechanical) 5 Years (Electrical)
California Residents: Prop 65 Warning


The X2O Gen2 Series Winches by SmittyBilt have an easy, do-it-yourself installation and can be done in the comfort of your garage or driveway. Give us a call if you have any additional questions,.


Smittybilt warrants to the original purchaser of this product that should the product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within the warranty period for a lifetime mechanical and a 5-year electrical warranty from the date of purchase, such defect(s) will be repaired or replaced without charge for parts or labor. To obtain repair or replacement within the terms of the warranty, the product is to be delivered with proof of warranty coverage, specification of defect, freight pre-paid with Returns Good Authorization Number from Smittybilt to place of purchase. Items returned to Smittybilt Automotive without an Returns Authorization Number will be refused and returned to sender at the senders expense.

This warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged through altercation, improper installation, mishandling, misuse, neglect accident or acts of nature. THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY THE PURCHASER FOR THIS PRODUCT.
