WARN ZEON XP 14-S Winch

$2,849.99
Disclaimer: The following information is provided by the manufacturer of the product and RealTruck is not responsible or liable for the content or accuracy of the information provided by the manufacturer.

Description

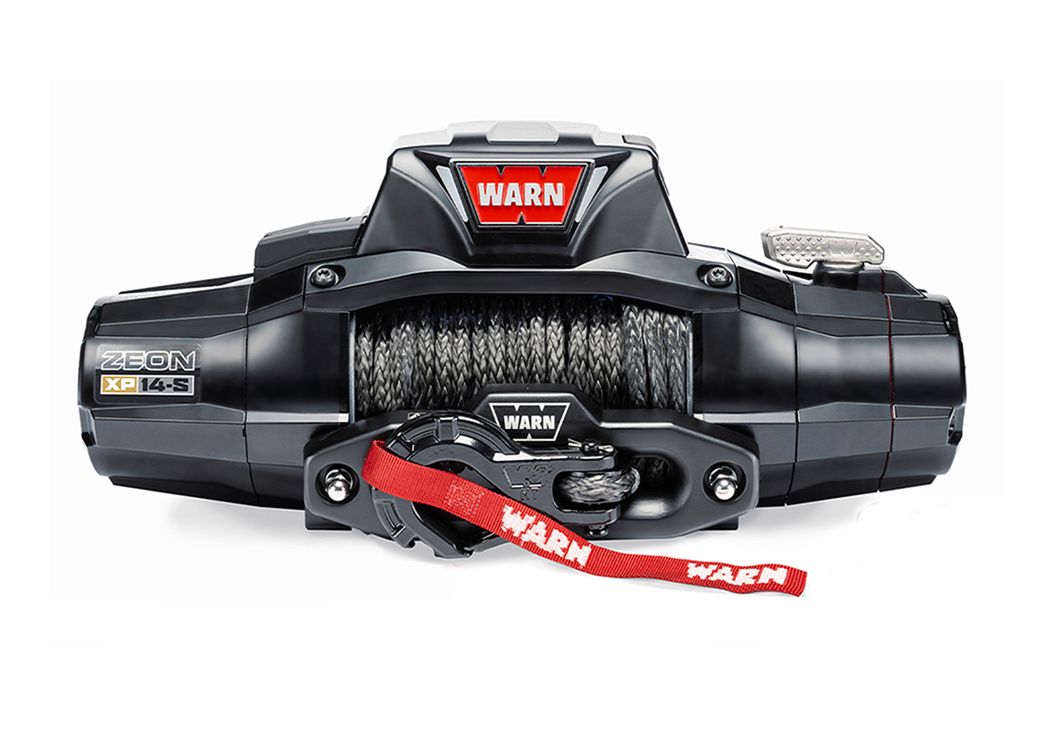

The WARN ZEON XP 14-S Winch delivers extreme recovery power with a massive 14,000 pound pulling capacity, making it ideal for heavy-duty trucks and vehicles that face demanding off-road or worksite conditions. As part of WARN’s ZEON XP series, this winch is engineered for fast line speeds, high efficiency, and dependable performance under load.

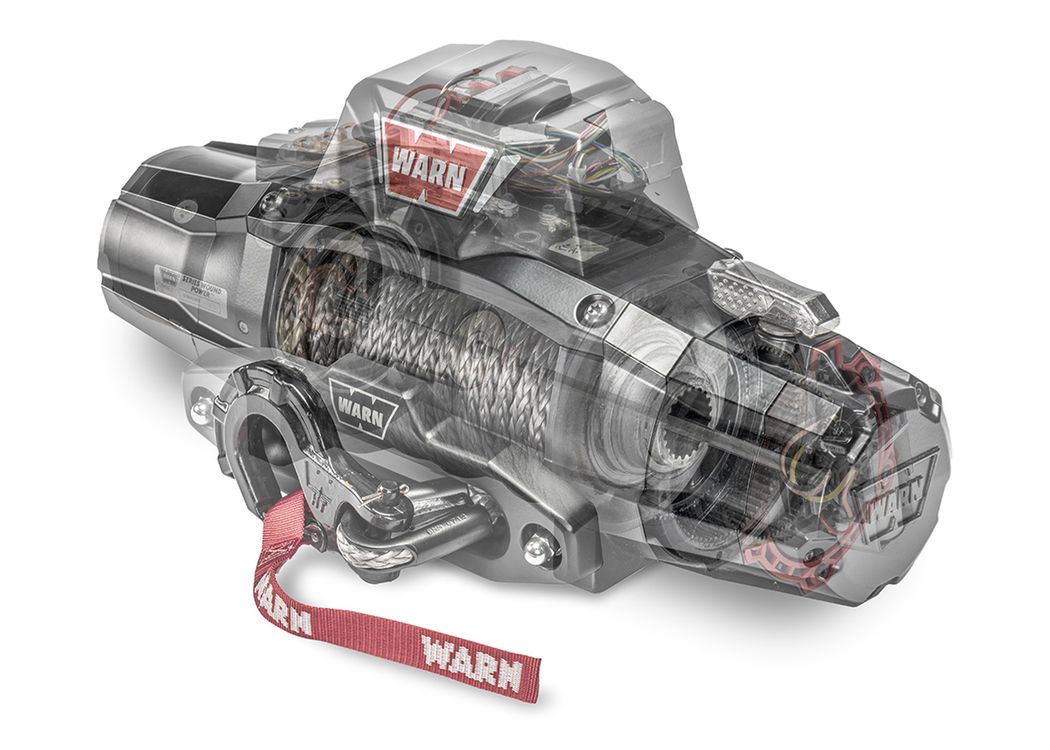

Built with a high-output motor, performance-focused geartrain, and fully sealed construction, the ZEON XP 14-S is designed to operate reliably in mud, water, and harsh weather environments. The synthetic rope reduces overall weight while improving handling and safety during recovery operations. Housed in a sleek, low-profile design, the ZEON XP 14-S integrates cleanly with aftermarket bumpers and winch mounts, delivering professional-grade WARN performance for the most demanding recovery situations.

Videos

WARN ZEON XP: TESTED AT THE LAST FRONTIER
04:16
Basic Guide to Winch Techniques
07:54

Installation

All Warn Winches have an easy, do-it-yourself installation and can be done in the comfort of your garage or driveway. For any additional questions please call us.

How to install a winch featuring the WARN ZEON
02:38

Warranty

Warn Industries, Inc. (WARN), warrants to the original purchaser that (a) the mechanical components of the WARN Branded Winch Product will be free of defects in material and workmanship for the lifetime of the winch, and (b) the electrical components of the product will be free of defects in material and workmanship for a period of seven (7) years from the original date of purchase. This Limited Warranty is only available to the original purchaser of the product and is not transferable.

Items not covered by this Warranty:

  • The removal or reinstallation of the product.
  • Wire or Synthetic Ropes.
  • Product finish.
  • Components damaged by accident, abuse, misuse, collision, overloading, modification, misapplication, improper installation, or improper service.
  • Normal wear and tear or loss of functionality due to the normal aging of the product including, bearings, bushings, seals, O-rings, gaskets, brake material, motor brushes, electrical cables.

Specifications

BrandWarn
WarrantyLimited Lifetime Mechanical / 7 Year Limited Electrical
Rated Line Pull (Single Line)14,000 lbs (6350 kg)
Rope MaterialSpydura Pro Synthetic Rope
Gear Train3-Stage Planetary
Gear Ratio213:1
FairleadBlack Anodized Forged-Aluminum Hawse
Mounting Bolt Pattern10" x 4.5" (254mm x 114.3mm)
Recommended Battery650 CCA minimum for winching
Rope Size3/8" Diameter x 80' Length (9.52mm x 24.38m)
Control TypeCorded Remote + Mobile Control via integrated HUB Wireless Receiver
MADE IN AMERICAYes
