Superlift 4.5" Lift Kit   Fits 2004-2008 Ford F150 (SUP-K173B)

Superlift's 4.5-inch lift kits for the 2004-2008 Ford F-150 are a great way to add height to your overall F-150's appearance. Superlift's Suspension Lift Kits have a strong, modern die-formed design constructed of solid steel giving your truck a strong suspension. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer. The 4.5-inch lift kit for the Ford F-150 is a complete replacement knuckle kit. This lift kit is available in the following shock options: Superlift Shocks(Rear Only) or Bilstein Shocks (Front Strut and Rear Shocks) or Fox 2.0 Shocks(Rear Only)

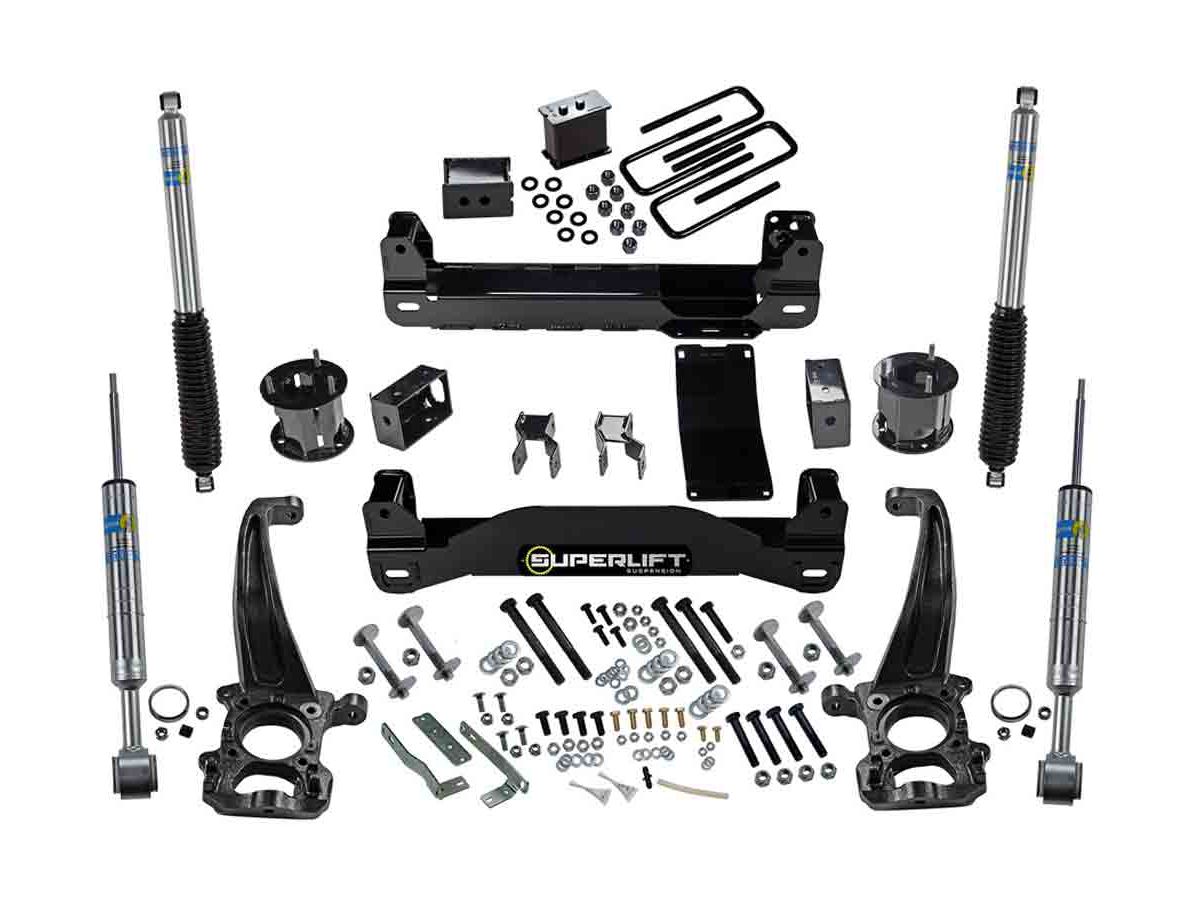

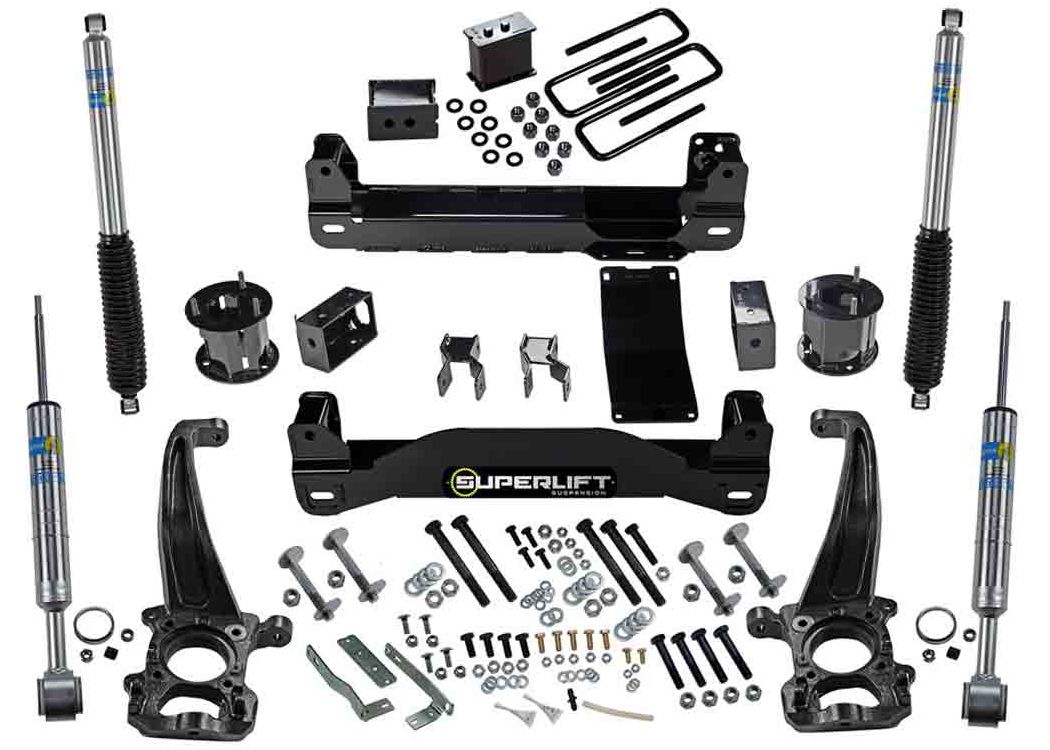

This kit includes front knuckles, front struts(BILSTEIN KIT ONLY) or strut spacers, lower control arm cross-members, a rear block kit, and rear shocks. All required parts are included to make sure your F-150 handles and performs in all conditions.

Features:

Adds clearance up to 35" diameter tires
Increased Ground Clearance
Factory Track Width Remains
Factory Steering Geometry Remains
Available Shocks options: Rear Only (Superlift and Fox) Front and Rear (Bilstein Only)
Ductile Iron Steering Knuckles
Full "Belly" Skid Plate.
HD Outer Tie Rod Ends
Rear lift is achieved with Block & U-bolt Kit
Levels the truck front to rear
Backed by our Limited Lifetime Warranty

Benefits:

Retains OEM caster and camber alignment specifications
No excessive ball joint or steering components
CV axle angles are in the stock parameters
Maintains stock like ride quality and handling

Technical Notes:

Cutting and Drilling is required
Cannot run the factory 17" wheel
Aftermarket 18" wheels require at 4.5" or more backspacing.
Aftermarket wheel required - 9 inch width or more
See Recommend tire and wheel combinations
AWD Models will require modification to the front driveshaft
Kit will not work on HD models featuring 7 Lug wheels
Do Not combine with any other suspension lift

Tire	Wheel	Backspacing	Offset
35 x 12.5	18 x 9	4.5 -5.7 inch	-
35 x 12.5	20 x 9	4.5 -5.7 inch	-
35 x 12.5	22 x 9	4.5 -5.7 inch	-
35 x 12.5	18 x 9	4.5 -5.7 inch	-
35 x 12.5	20 x 9	4.5 -5.7 inch	-
35 x 12.5	22 x 9	4.5 -5.7 inch	-

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these IMPORTANT factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
