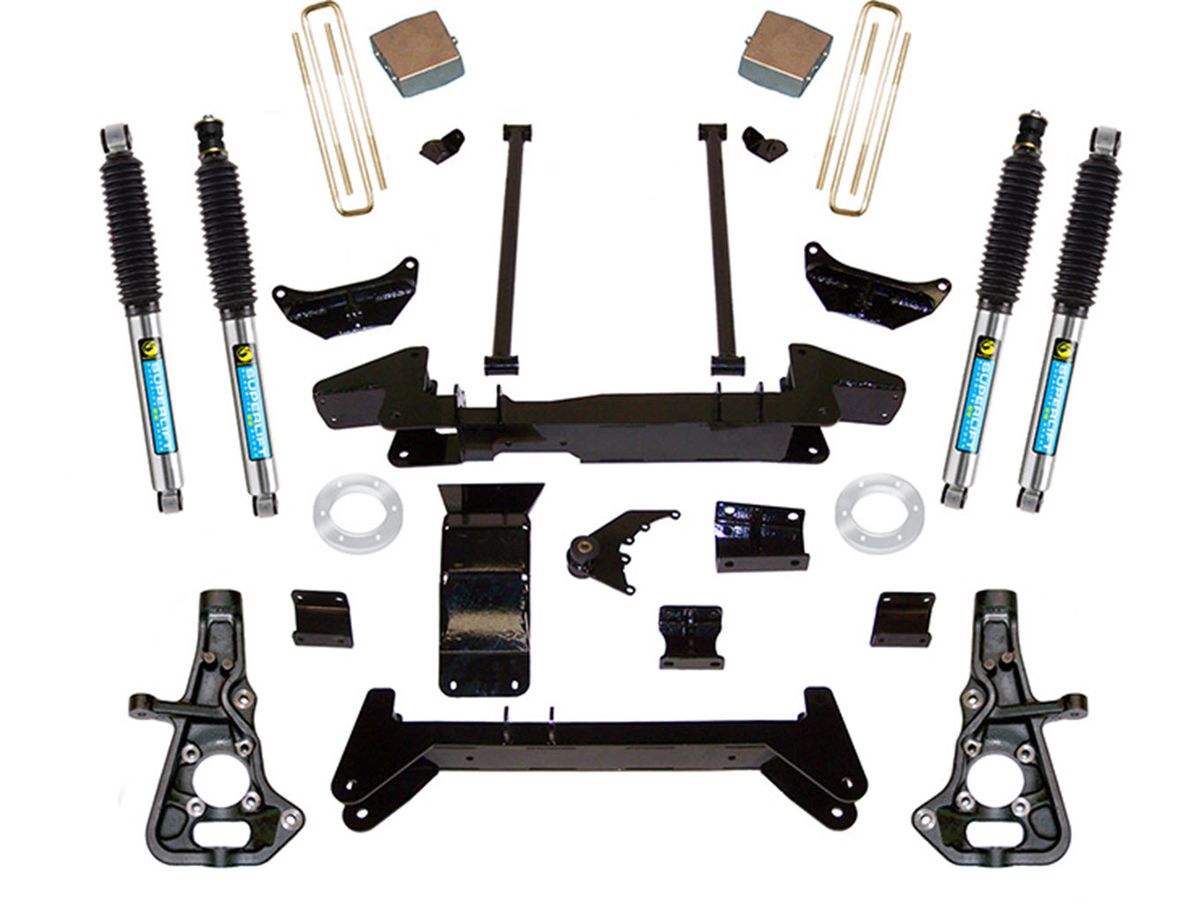

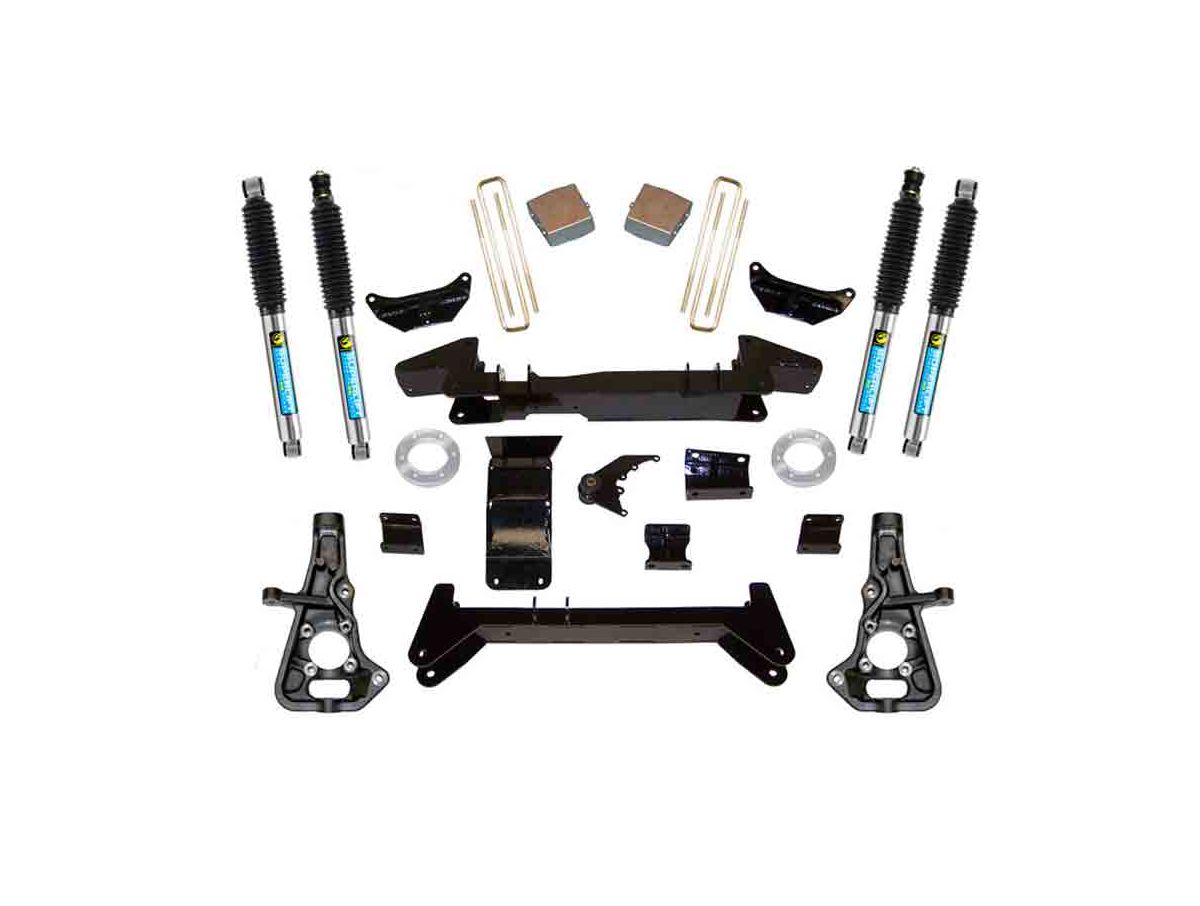

- Includes: Spindles
- Includes: Knuckles
- Includes: Axle spacer mach
- Includes: Hardware
- Includes: LCA support plate bracket
- Includes: Front and rear shocks,bilstein frt lower shock brackets
- Includes: Diff brackets
- Includes: Belly pan bracket
- Includes: Torsion bars brackets
- Includes: Rear compression snubber brackets
- Includes: Tab nuts
- Includes: X-member brackets
- Includes: Sway bar brackets
- Includes: Carrier bearing bracket
- Includes: Block kit
Free Shipping on Orders $100+
Build Your Truck in 3D with RealTruck Builder
Superlift 6" Lift Kit Fits 2001-2004 Chevy Silverado 2500, GMC Sierra 2500, 2001-2007 Chevy Silverado/GMC Sierra 1500 (SUP-K861B)
$2,349.99
(1)
Part #:K861B
Features
- Complete front and rear lift kit
- Vehicle-specific fitment
- Includes all required installation hardware
- Most kits are available with Superlift, Fox, or Bilstein shocks
- Proudly assembled in Louisiana
- Limited lifetime warranty
Description
This Superlift is a complete knuckle style lift kit providing 6" lift height.
Features:
Replacement knuckles yield the best possible alignment specs with minimal increase in track width.
Skid plate connects and strengthens the front / rear crossmembers while protecting the differential
Superlift or SS series by Bilstein shocks included
Installer-friendly design
No replacement front driveshaft required
High clearance, one-piece crossmembers, and all other load-bearing bracketry are laser cut from .25" thick plate steel.
| Tire | Wheel | Backspacing | Offset |
|---|---|---|---|
| 35 x 12.5 | 16 x 8 | 4.5 | - |
| 35 x 12.5 | 17 x 9 | - | -12 to 0 |
| 35 x 12.5 | 18 x 9 | - | -12 to 0 |
| 35 x 12.5 | 20 x 9 | - | -12 to +12 |
IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these IMPORTANT factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
Installation
The Superlift 6" standard lift kit includes all necessary components and thorough installation instructions, however, at-home installations may require specialty tools and extensive modifications. We wouldn't recommend DIY installations without proper experience, tool access, and pre-existing mechanical knowledge.
For additional assistance, check out our comprehensive installation tutorials or contact the experts.
Get It Installed
Warranty
All suspension components and kits from Superlift come backed by a limited lifetime warranty against defects in materials or workmanship. Please give us a call if you have any questions.
Specifications
BrandSuperLift
