Superlift 6.5" Coilover Lift Kit

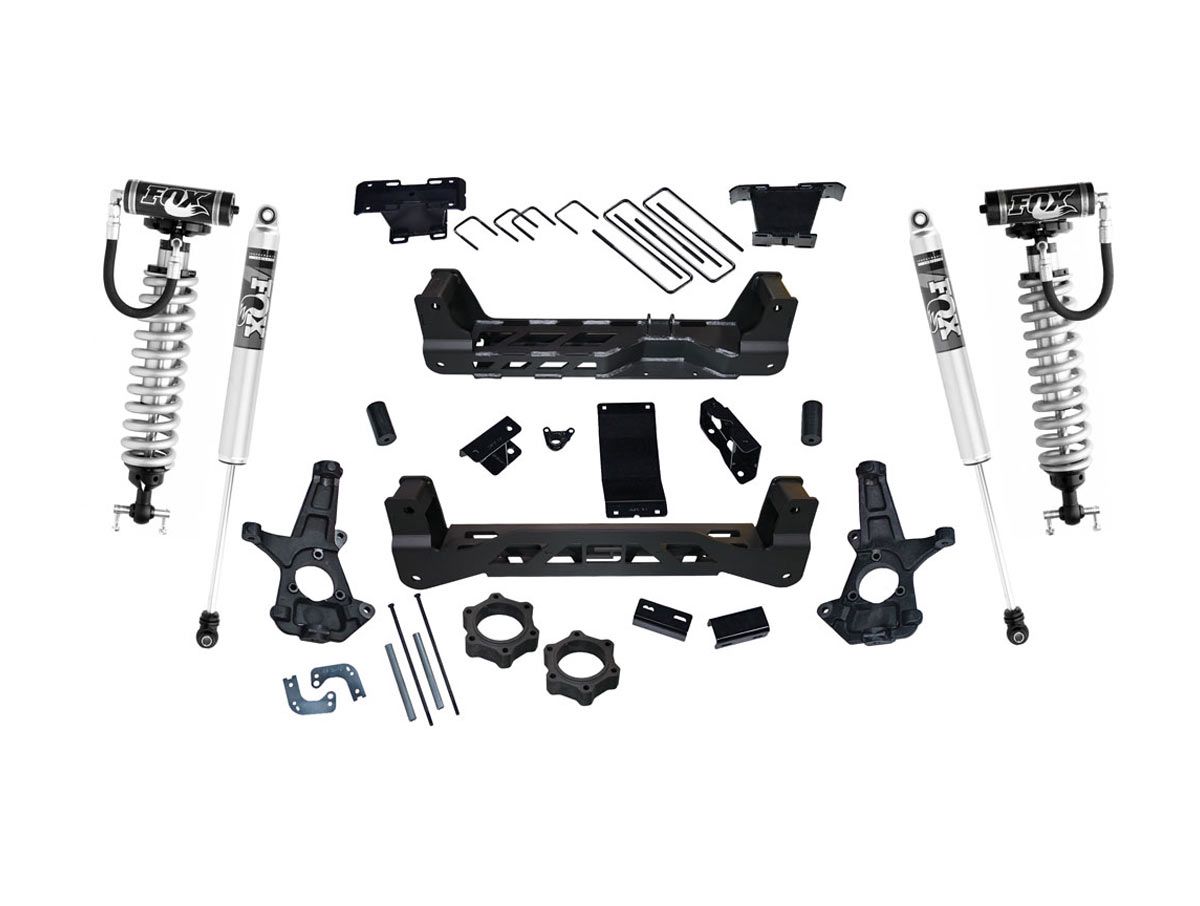

Superlift's 6.5 FOX coil over lift kit for the 2014-2018 Chevrolet Silverado or GMC Sierra 1500 4WD and 2WD is a great way to add height to your overall GM 1500 appearance. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer. This 6.5 inch Lift kit for the GM 1500 Pickup is a complete replacement knuckle kit.
Superlift's geometry, from steering timing and linkage angles to driveshaft and CV axle operating angles, yields optimal component service life and exceptional drivability. Our Lower Control arm cross-members are true to their height and are a one-piece, full-width, high-clearance design made of .25" steel plate.
Features:

FOX Coilovers and rear shocks
Direct bolt-on (No Weld Design)
Adds clearance for up to 35" tires
Heavy duty, - plate lower control arm crossmembers

Benefits:

Best in class ride quality and performance.
Retains OEM caster and camber alignment specifications
Maintains ride quality and handling characteristics
Aligns to OEM Specifications
Designed using original Equipment (OE) CAD data for accuracy

NOTES:

Not recommended for AWD models
Does not fit models with Auto Ride or Auto leveling
Only fits models with aluminum or stamped steel upper control arms

Tire	Wheel	Backspacing	Offset
35 X 12.5	18 x 9	4.3	-6
35 X 12.5	20 X 9	-	+12 to +18
305/65 R18	18 x 9	-	+12 to +18
305/55 R20	20 X 9	-	+12 to +18

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these IMPORTANT factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
