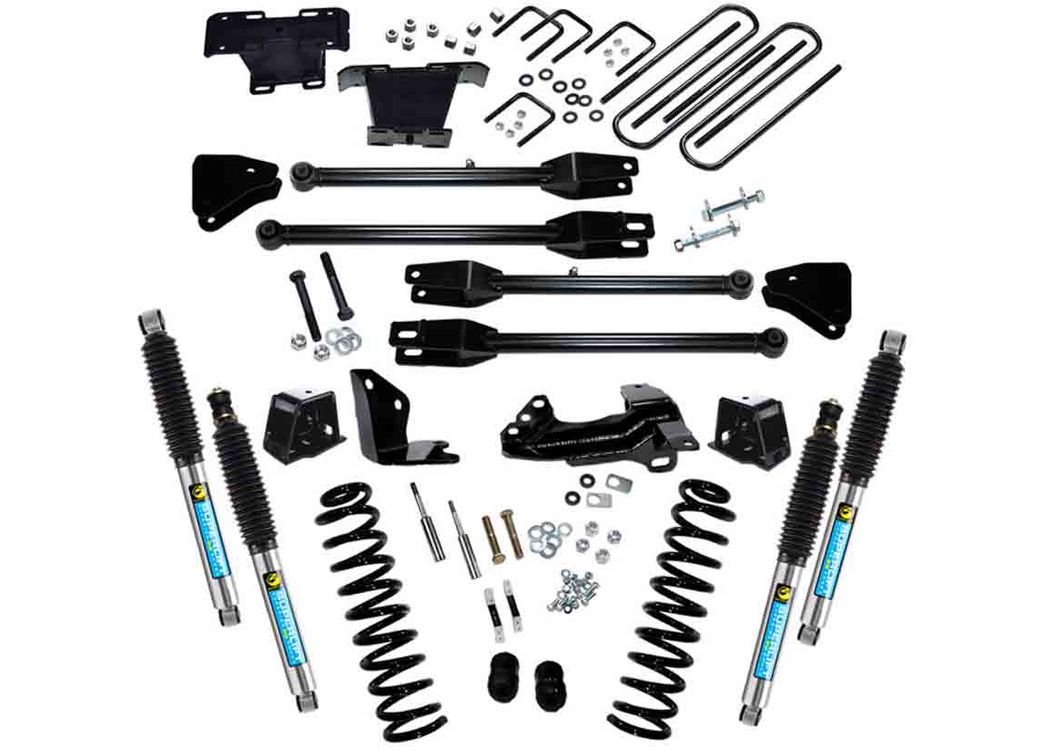

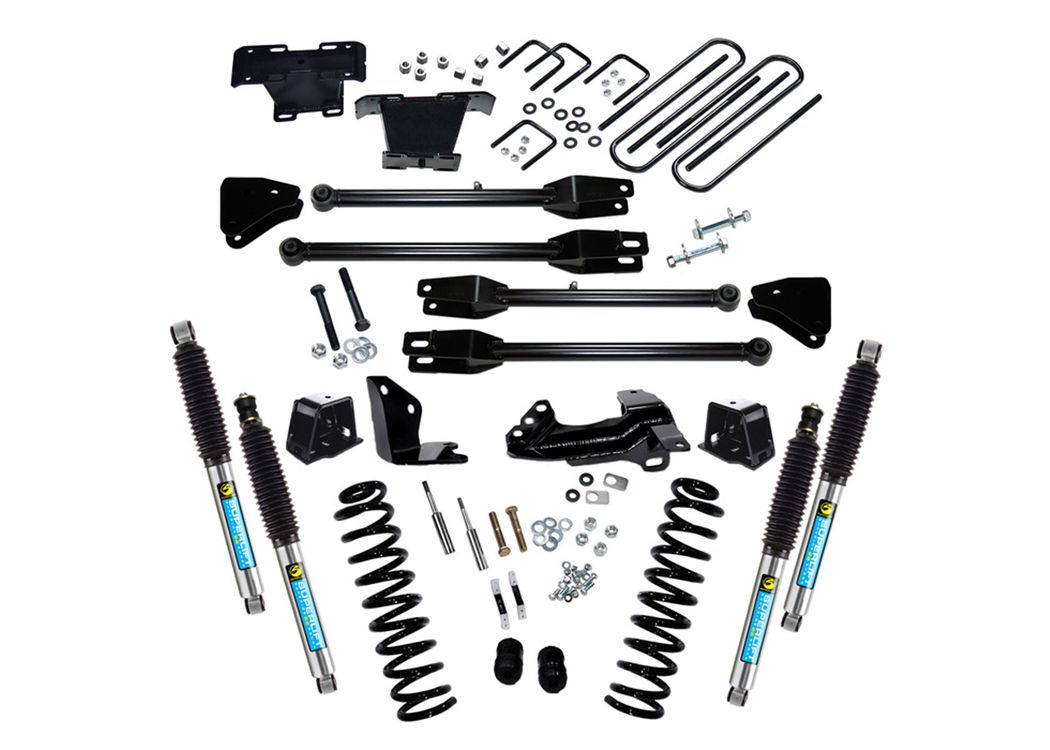

Superlift 4" 4-Link Lift Kit

Superlift Suspension Systems now available with Superlift Shocks or Bilstein Shocks or Fox Shocks:

This 4" Lift for the2005-2007Ford Super Duty F-250 | F-350 4WD features Superlift'precision engineered, heavy-duty tubular 4-LINK arms designed to give your ride a truly custom look and easy install. These heavy-duty4-LINK arms utilize a press-fit REFLEX bushing for superior vibration dampening, flexibility, and durability.

The 4-LINK design optimizes the F-250 and F-350's suspension control and tire wear by limiting caster change through the cycle of suspension. The 4" lift also contains new, diesel specific rate front coil springs. A new track bar relocation bracket to ensure proper steering geometry and track bar phasing.

The rear lift is achieved with a new designed fabricated rear block that allows the removal of the stock block. This fabricated block also allows for proper pinion and axle angle all while reducing axle wrap. Complete your 4-inch Ford F-250 | F-350 with the best variety of shocks on the market. Shocks for this kit are available in the following: Superlift | Bilstein 5100 Series | Fox Performance Series 2.0 IFP Shocks.

Features:

Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
Replacement Heavy-Duty Tubular 4-LINK arms with Reflex bushings
Track bar relocation bracket prevents stud bind and steering wheel kick
Front and Rear - Superlift Shocks | Bilstein 5100 Series Shocks | Fox Performance Series 2.0 IFP Shocks
Backed by our limited lifetime warranty

Benefits:

Retains OEM caster and camber alignment specifications
Maintains ride quality and handling characteristics
Designed using original Equipment (OE) CAD data for accuracy

NOTES:

If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9649
For Super duty's equipped with the 1-7/8" blocks and top overloads, Part #11674 will need to be purchased in addition to the lift kit.

Tire	Wheel	Backspacing	Offset
35 x 12.5	17 x 9	4.5	-
35 x 12.5	18 x 9	4.5	-
35 x 12.5	20 x 9	4.5	-

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these IMPORTANT factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
