Superlift 3.5" Lift Kit

The distinctive design of the Superlift3.5" Lift Kit utilizes high-quality components plus impressive features like: ZERO cutting or trimming of the crossmembers, keeping your factory splash guard or running factory wheels without wheel spacers, and truly retaining the OEM caster and camber alignment specifications to name a few.

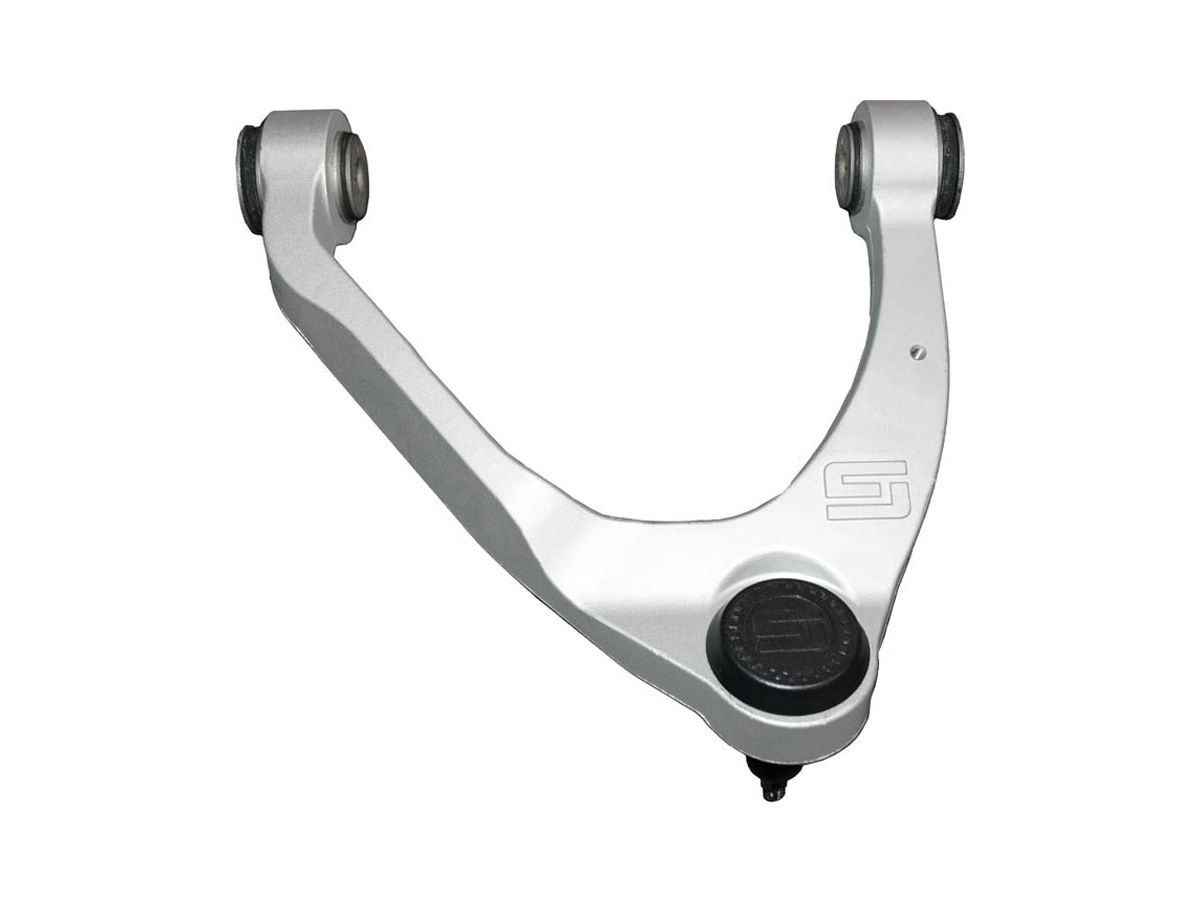

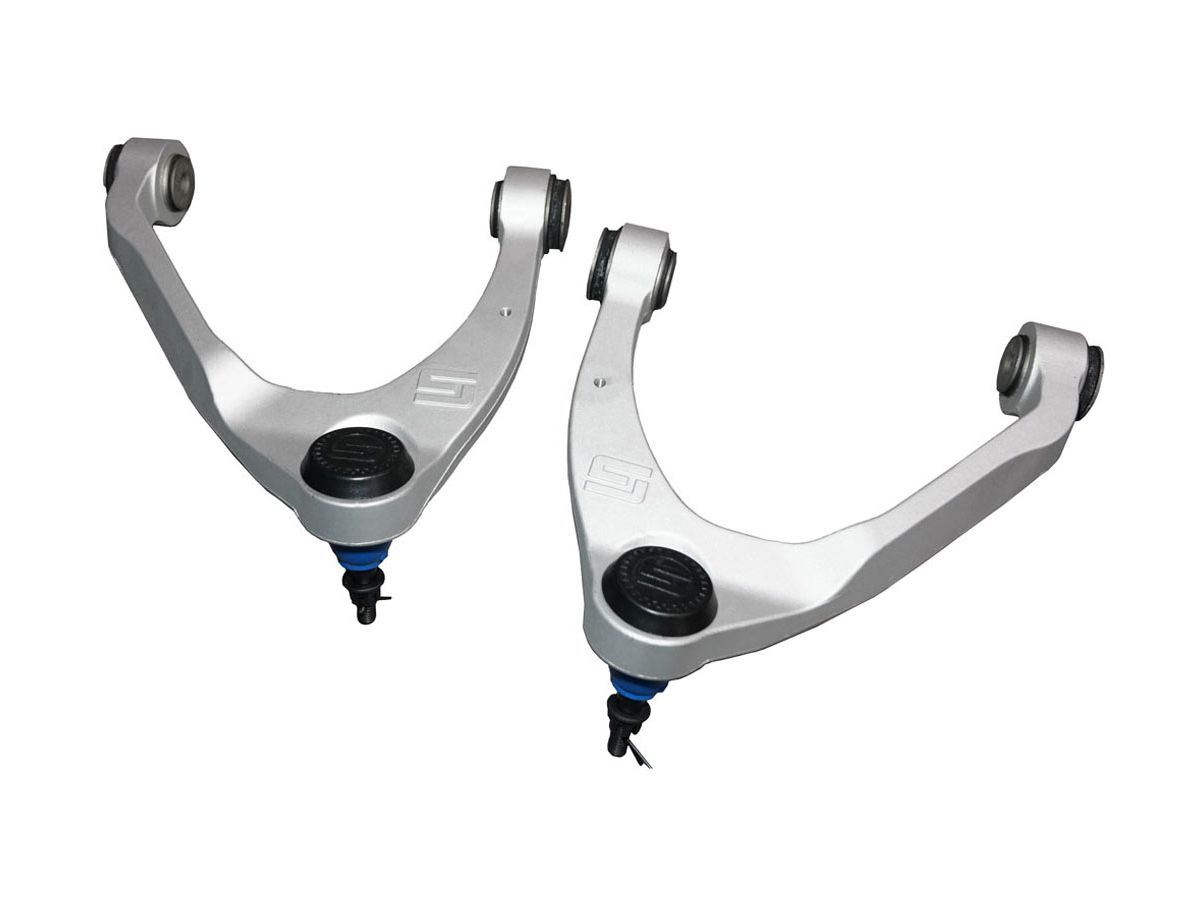

Superlift's heavy-duty, Forged Aluminum upper control arms (UCA) are engineered for superior strength and durability with modern look.
UCA's include pre-installed ball joints and bushings
ZERO cutting of the rear crossmember
CNC machined billet Aluminum differential drop brackets to maintain proper CV axle angles (2WD models do not utilize the differential components)
CNC formed belly skid pan protects the differential from on and off-road hazards
Laser cut & precision conformed top strut mount strut spacers add lift height
Rear lift is achieved with Block & U-Bolt Kit
Requires NO modification to the stock exhaust
A simple and Super-EZ bolt-on installation
Front OE "splash shield" is able to be maintained
Adds clearance for 33" diameter tires without fender trimming
Comes complete with Superlift or Bilstein shocks for the rear

NOTE: Do not use with trucks equipped with electronic shocks NOTE: This suspension kit WILL NOT work with any late model GM Truck or SUV equipped with MAGNERIDE from GM

Tire	Wheel	Backspacing	Offset
285/65 R18	18 x 9	-	0 to +18
285/55 R20	20 x 9	-	0 to +18
305/65 R18	18 x 9	5 - 5.5	+13 to +25
305/55 R20	20 x 9	5 - 5.5	+13 to +25

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these IMPORTANT factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
