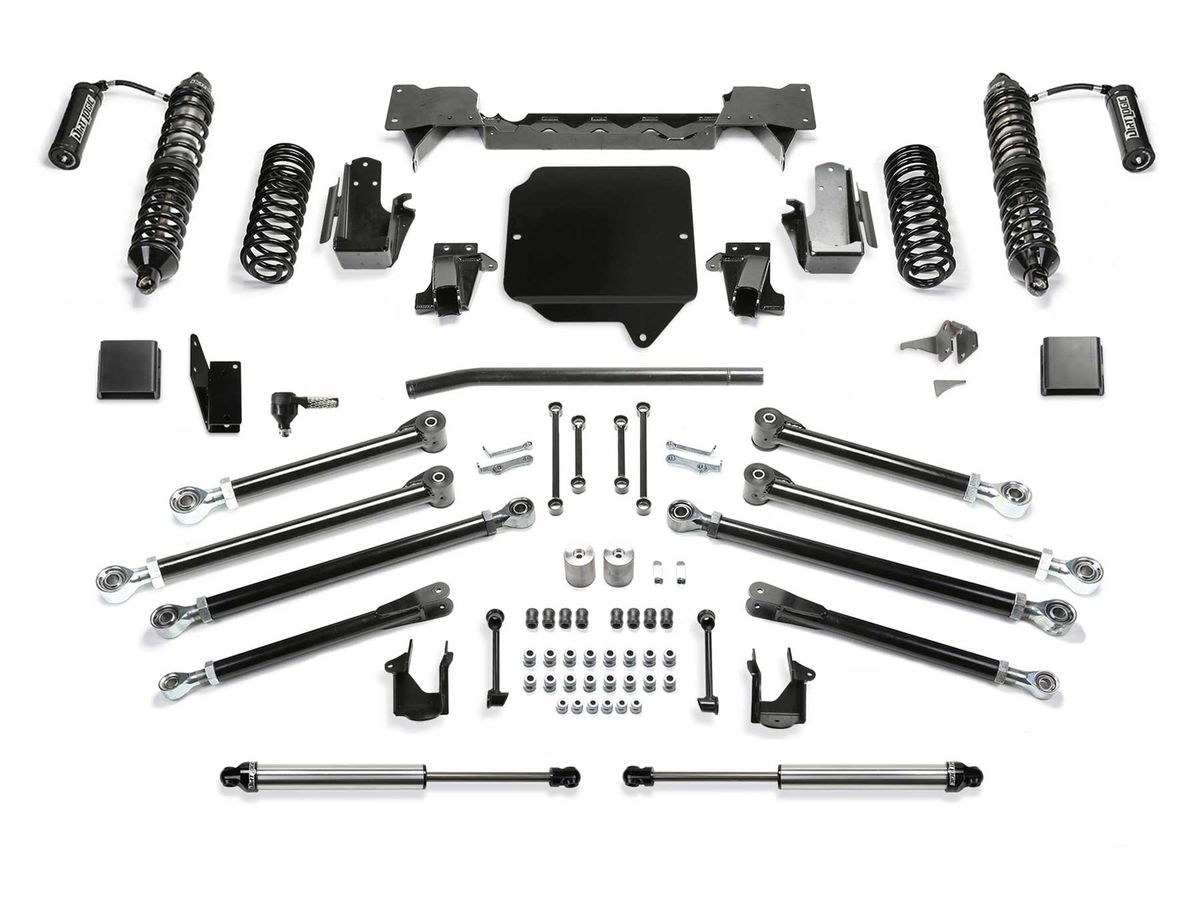

- Includes: Front Dirt Logic 2.5 RESI coilovers
- Includes: Front Dirt Logic 2.25 shocks
- Includes: Front upper & lower link arms
- Includes: Rear upper & lower link arms
- Includes: Front link arm crossmember
- Includes: Rear lower link arm mounts
- Includes: Rear dual rate coil springs
- Includes: Front & rear bump stop extensions
- Includes: Front & rear sway bar links
- Includes: Front & rear brake line drops
- Includes: Front & rear track bar brackets
- Includes: Heavy duty flipped draglink
- Required: Welding
- Required: Exhaust modification (Or order AFE #48-48024 Loop Delete Pipe)
- Note: For heavy offroad use, front driveshaft is required (#FTS94057)
- Note: For heavy offroad use, rear driveshaft is required (See a quality driveline supplier to order)
Free Shipping on Orders Over $100
Fabtech 5" Coilover Lift Kit
$6,513.98
Part #:K4179DL
Disclaimer: The following information is provided by the manufacturer of the product and RealTruck is not responsible or liable for the content or accuracy of the information provided by the manufacturer.
Features
- Adds room for larger wheels & tires
- Pair of Dirt Logic coilovers
- Many kits include new extended-length shocks
- Designed with high quality components for durability
- Suspension lift kits come with installation hardware
- Sold as a complete front & rear kit
Description
Fabtech 5" coilover Lift Kits allow you to add extra clearance and turn your truck into an off-road beast! Fabtech lift kits are simple and effective, delivering true additional clearance while maintaining a factory like ride. Fabtech coilover lift kits allow you to add larger wheels and tires to your ride!
The upgraded suspension components that make up these kits are designed to take the place of your factory parts and install in their place. This makes installation quick and simple without the need for drilling or modifying your factory suspension. These are complete kits and will lift both the front and rear of your truck. Most kits come with longer shocks and come in a variety of options for you to choose from.
Lift your truck right with one of the best suspension upgrades money can buy and order your Fabtech 5" coilover lift kit today!
| Tire | Wheel | Backspacing | Offset |
|---|---|---|---|
| STOCK FENDERS | |||
| 37 x 12.50R17 | 17 x 9 | 4½" (w/ Minor Trimming) | - |
| 37 x 12.50R18 | 18 x 9 | 4½" (w/ Minor Trimming) | - |
| 37 x 12.50R20 | 20 x 9 | 5" (w/ Minor Trimming) | |
| HIGH CLEARANCE FENDERS | |||
| 40 x 12.50R17 | 17 x 9 | 4½" (w/ Cutting) | - |
| 40 x 13.50R18 | 18 x 9 | 4½" (w/ Cutting) | - |
| 40 x 13.50R20 | 20 x 9 | 5" (w/ Cutting) | - |
IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
Installation
Even though we recommend having your new lift kit installed by a shop, that doesn't mean you couldn't do it yourself. Fabtech lift kits alter your suspension and may require tools that most people don't have lying around their garage. You should also have your vehicle aligned once your lift kit is installed to make sure that everything is coming up roses. If you have any questions or would like additional information, please give us a call.
Warranty
Fabtech 5" coilover Lift Kits allow you to add extra clearance and turn your truck into an off-road beast! Fabtech lift kits are simple and effective, delivering true additional clearance while maintaining a factory like ride. Fabtech coilover lift kits allow you to add larger wheels and tires to your ride!
The upgraded suspension components that make up these kits are designed to take the place of your factory parts and install in their place. This makes installation quick and simple without the need for drilling or modifying your factory suspension. These are complete kits and will lift both the front and rear of your truck. Most kits come with longer shocks and come in a variety of options for you to choose from.
Lift your truck right with one of the best suspension upgrades money can buy and order your Fabtech 5" coilover lift kit today!
Specifications
BrandFabtech
Warranty5 Years/60,000 Miles
