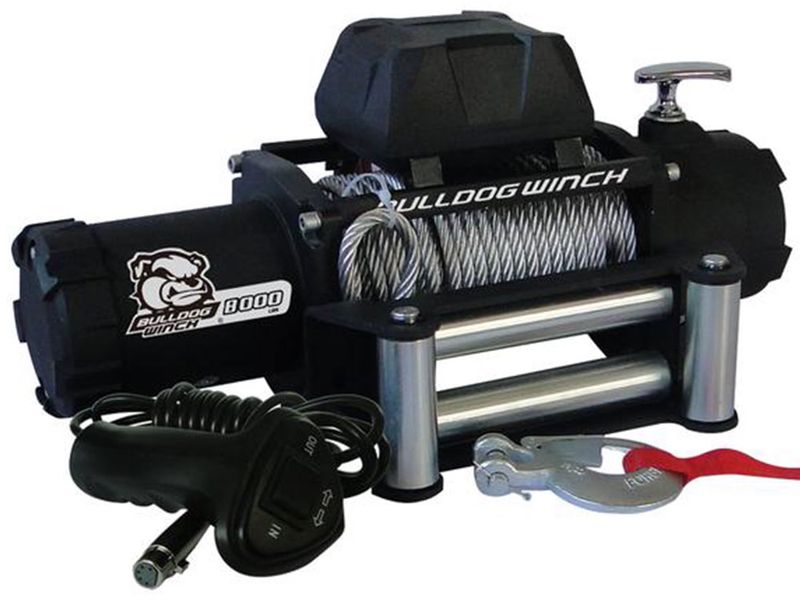

Bull Dog 8,000 Truck Winch w/ Wire Rope

Product Information

List Price:$399.99
Our Price:$284.20
Rating:
3
Part #:
BDW-10041
  • Rated line pull: 8,000lbs
  • Gear Train: 3 stage planetary
  • Gear ratio: 235:1
  • Wire Rope Dia x L: 5/16" x 100'
  • Drum Dia x L: 2.5" x 8.8"
  • Battery Leads: 1ga x 6'
  • Overall Dimensions 21"L x 6.3"W x 8.6"H
  • Mounting Bolt Pattern: 10" x 4.5"
  • Weight: 80lbs

description

California Residents: Prop 65 Warning

details

Specifications

Pull, Speed, Amps Line Pull
lbs (kgs)
Line Speed
ft/min (m/min)
Current (A) 0 22 (6.7) 80 4000 (1814) 12 (3.7) 200 6000 (2722) 9 (2.7) 270 8000 (3629) 6.5 (2) 330 Line Pull and Rope Capacity in Layer Layer Rated Line Pull
lbs (kgs)
Total Rope
on Drum
ft (m)
1 8000 (3629) 19.6 (6.0) 2 6540 (2966) 42.6 (13.0) 3 5500 (2495) 72 (22) 4 4750 (2155) 100 (30.48)

warranty

BullDog Winch offers a limited two year warranty against defects in materials or workmanship on their truck recovery winches including the 8000lb DC Self Recovery Winch.
