Understanding Your Vehicle’s Battery Charging System: Battery, Alternator and Voltage Regulator

What Are the Parts of a Vehicle’s Battery Charging System?

Now that you know what the battery charging system does, let’s take a closer look at the components that make it all work. While it may seem like a complex setup, the system is built around three key components—each with its own role, lifespan, and failure points. Understanding how these components function can help you diagnose issues more quickly and keep your truck running smoothly.

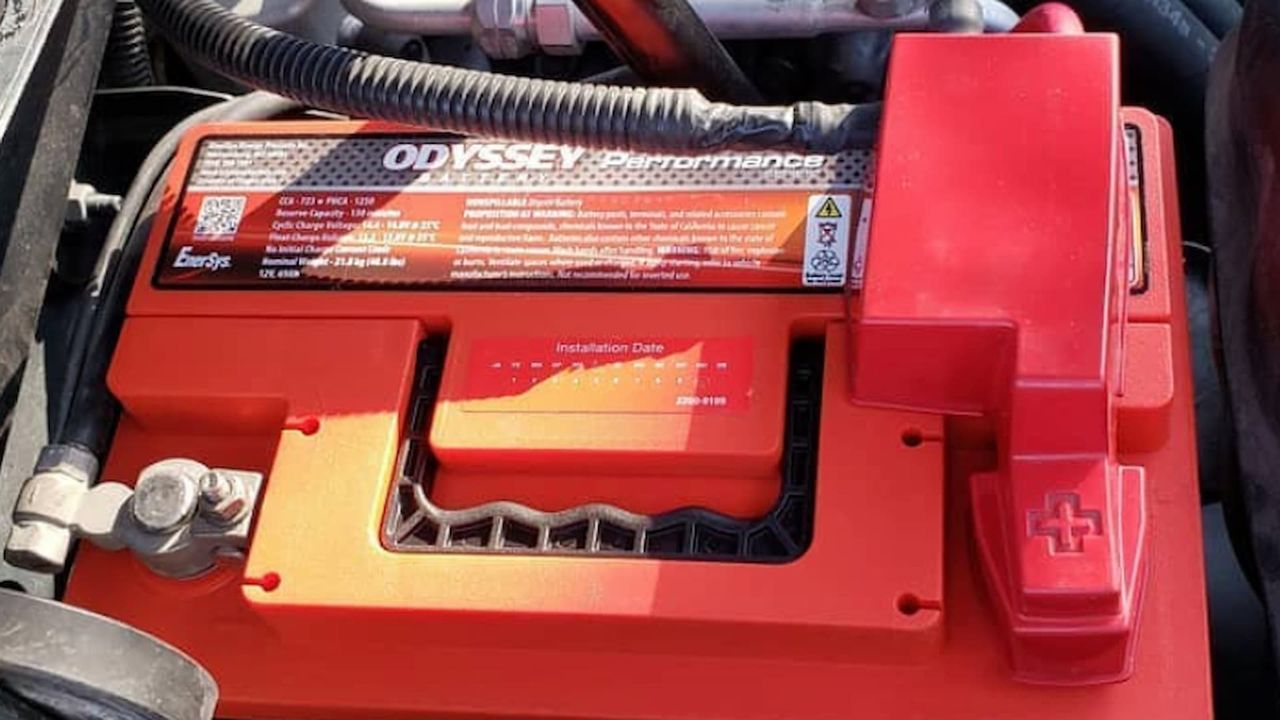

The Battery

What Does a Car Battery Do?

The battery is the heart of your truck’s electrical system—at least when the engine’s off. It stores electrical energy and provides the high-voltage burst needed to start your engine. It also powers all electrical components when the engine isn't running, like your interior lights, radio, and alarm system.

Once the engine is on, the alternator takes over power delivery, but the battery still plays a critical support role. A weak or failing battery can cause issues even if the alternator is in good shape.

How Long Does a Car Battery Last?

Most vehicle batteries last between three and five years, depending on factors such as climate, usage, and maintenance. Extreme temperatures, frequent short trips, and heavy accessory use can all shorten battery life. Keeping your terminals clean and checking voltage occasionally can help you catch a failing battery before it leaves you stranded.

What Are the Signs of a Bad Car Battery?

Common signs your battery is going bad include:

• Slow or labored engine cranking

• Dim or flickering headlights

• Electrical issues with accessories (like windows or radio)

• Clicking sound when turning the key

• Dashboard battery warning light

• Needing frequent jump-starts

If you're noticing any of these symptoms, it’s time to test your battery—or replace it. Learn which batteries are best for your ride in our guide to the Best Car Batteries of 2025. Learn more about battery types and which to replace your vehicle’s battery in our guide, “Can I Replace an AGM Battery with Lead Acid?”

The Alternator

What Does an Alternator Do?

The alternator is the workhorse of the battery charging system. Once the engine is running, it generates power by converting mechanical energy (from the crankshaft) into electrical energy. It sends that electricity to your vehicle’s electrical systems and keeps the battery charged while you drive.

It also helps support power-hungry accessories, such as LED lights, upgraded sound systems, and winches. Without a properly functioning alternator, your battery will drain fast—even if it’s brand new.

How Long Does an Alternator Last?

Alternators typically last between 80,000 and 150,000 miles, although this range can vary depending on driving habits, electrical load, and environmental factors. If you frequently run aftermarket accessories or drive in dusty or muddy conditions, your alternator may wear out sooner.

What Are the Signs of a Bad Alternator?

A failing alternator can mimic a bad battery, but the root cause is different. Watch for these signs:

• Battery light or charging system warning light

• Dim or overly bright headlights

• Dead battery (even after replacement)

• Electrical accessories are acting erratically

• Strange smells (burning rubber or wires)

• Whining or grinding noise from the engine bay

If your battery keeps dying and you're not sure why, the alternator is a likely suspect.

The Voltage Regulator

What Does a Voltage Regulator Do?

The voltage regulator is the unsung hero of the battery charging system. Its job is to regulate the amount of voltage the alternator sends to the battery and electrical system. Without it, the alternator could overcharge the battery or send inconsistent power to your truck’s electronics—leading to severe damage.

Modern vehicles often have built-in or ECU-controlled voltage regulators, while older rigs may use a standalone unit.

How Long Does a Voltage Regulator Last?

Voltage regulators don’t have a strict mileage lifespan, but like any electronic component, they can fail over time—primarily due to heat, vibration, or corrosion. In most cases, a regulator will last 100,000 miles or more—however, if you’re experiencing charging issues and the battery and alternator checks out, this could be the problem.

What Are the Signs of a Bad Voltage Regulator?

Voltage regulator issues can be tricky to spot, but common symptoms include:

• Overcharging or undercharging the battery

• Dim or flickering headlights

• Engine misfires or rough idle (due to inconsistent voltage)

• Dashboard warning lights

• Dead battery, even when the alternator is working properly

If your voltmeter is bouncing all over the place or your battery winds up mysteriously fried, a faulty voltage regulator could be to blame.

How Does A Vehicle’s Battery Charging System Work?

Your vehicle’s battery charging system kicks in as soon as the engine starts. The process begins with the battery, which provides the initial jolt of power to the starter to crank the engine. Once the engine is running, the alternator—typically driven by the serpentine or accessory belt—becomes the primary power source, keeping your battery charged and supplying electricity to everything from your headlights to your infotainment system.

The alternator generates power by spinning a rotor inside a stator, creating an electrical current. That current flows through the voltage regulator, which controls the amount of voltage sent to the battery and electrical system. If too much power is sent, it could damage components or overcharge the battery. Too little, and the battery drains while trying to support all the truck’s systems.

As long as the alternator and voltage regulator are functioning correctly, your battery charging system maintains a steady voltage—typically between 13.5 and 14.7 volts—keeping everything powered while safeguarding your vehicle’s electronics against electrical spikes. If any one of these parts fails, your truck’s electrical system can quickly become unreliable, leaving you with a dead battery or worse.

Signs of A Bad Alternator Vs. Bad Battery Vs. Bad Voltage Regulator

For a quick and easy diagnosis, consult the table below. This guide outlines the general symptoms of each part of the battery charging system failing, enabling you to diagnose the problem quickly and get back on the road.

If you’re still struggling to diagnose your issue, reach out to your local automotive repair shop or auto parts store. Most offer free diagnostic services if you bring the individual parts in for testing. A quick battery or alternator test can save you time and money, as well as the headache of swapping out the wrong component.

Understanding how your vehicle’s battery charging system works—and how each part plays a role—makes it much easier to troubleshoot electrical problems before they leave you stranded. Whether it’s a faulty battery, a worn-out alternator, or a defective voltage regulator, catching the issue early is crucial to keeping your truck running smoothly.
